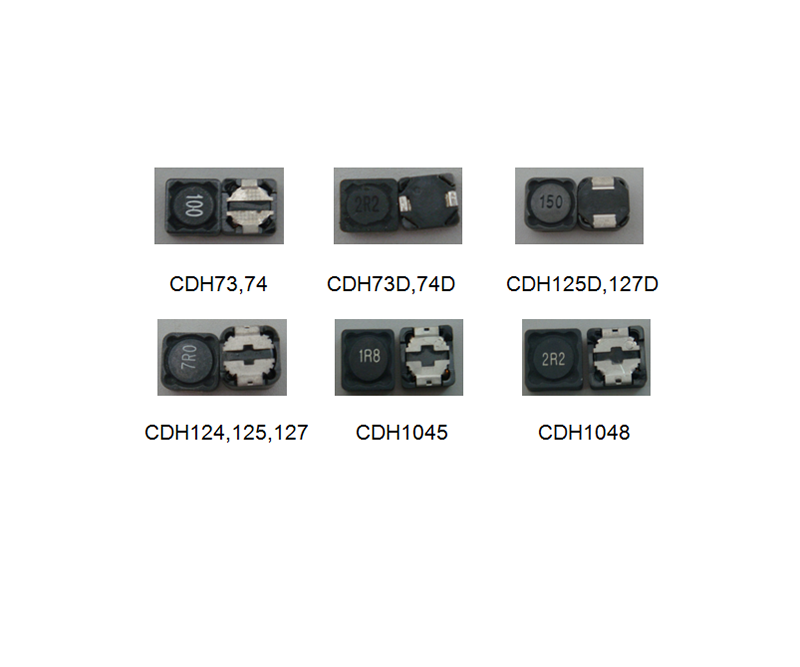

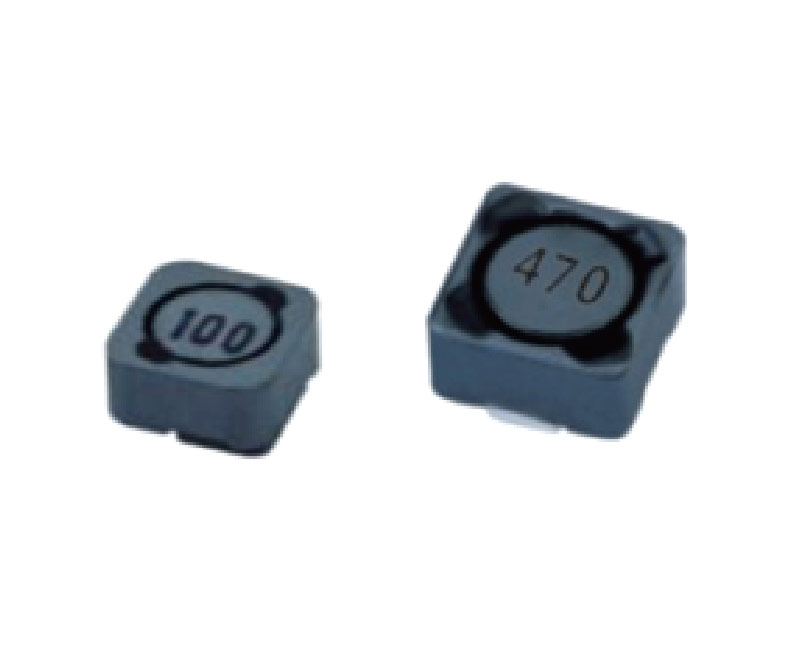

■Features/特性 Various high power inductors are superior to be high saturation for surface mounting. ■Applications/用途 Power supply for VTR, OA equipment, digital camera, LCD TV set, notebook PC, partable communication equipments, DC/DC converters, etc |  |

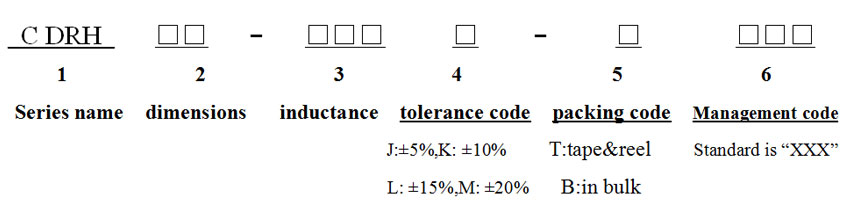

■Part numbering system/型号标示法

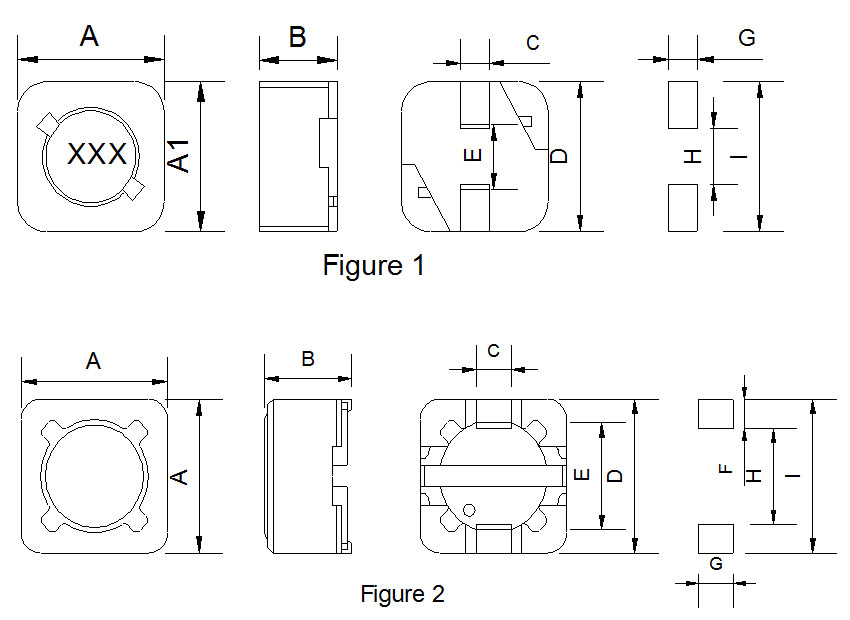

■Shapes and dimensions/外形及尺寸 (UNIT:mm)
Type | Amax | A1max | Bmax | C | D | E | F | G | H | I | Firgre |
CDRH62 | 6.5 | 6.2 | 3.0 | 1.50 | 6.0 | 2.8 | -- | 2.50 | 4.00 | 8.10 | 1 |
CDRH64 | 6.5 | 6.2 | 5.0 | 1.50 | 6.0 | 2.8 | -- | 2.50 | 4.00 | 8.10 | 1 |
CDRH73 | 7.5 | --- | 3.40 | 1.80 | 7.20 | 5.4 | 1.5 | 2.20 | 4.80 | 7.80 | 2 |
CDRH74 | 7.5 | --- | 4.50 | 1.80 | 7.20 | 5.4 | 1.5 | 2.20 | 4.80 | 7.80 | 2 |

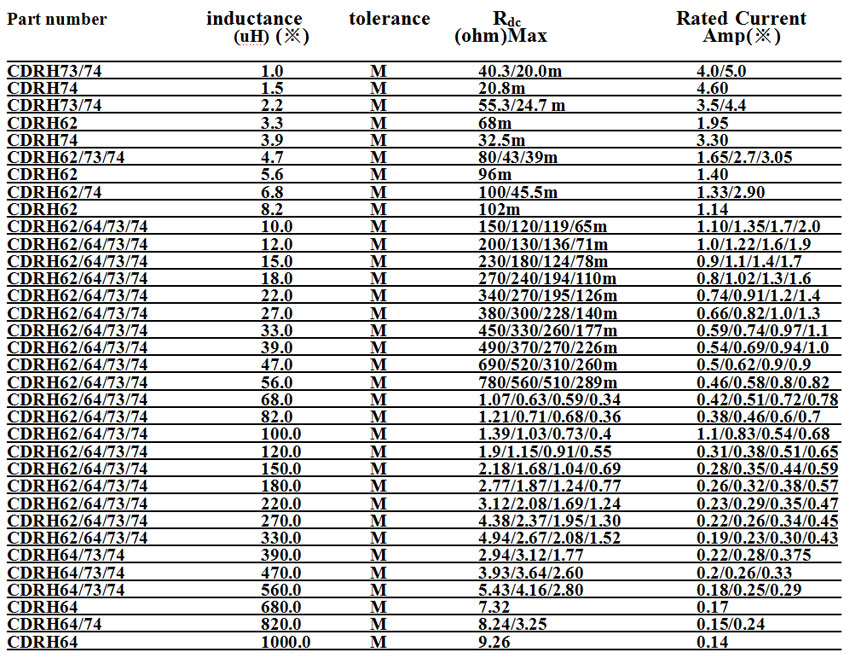

Specification table:
■SERIES: CDRH 62/64/73/74
※额定电流值为能够满足直流叠加允许电流和温度上升允许值的直流电流值
※Inductance Test Fr. 100KHz 100mA(HP 4277A) at 20℃(L<10uH时)
Inductance Test Fr. 1.0KHz 100mA(HP 4277A) at 20℃(L>10uH时)
※没有完全列出所有规格,没有列于表内的电感量规格可联系我们定制

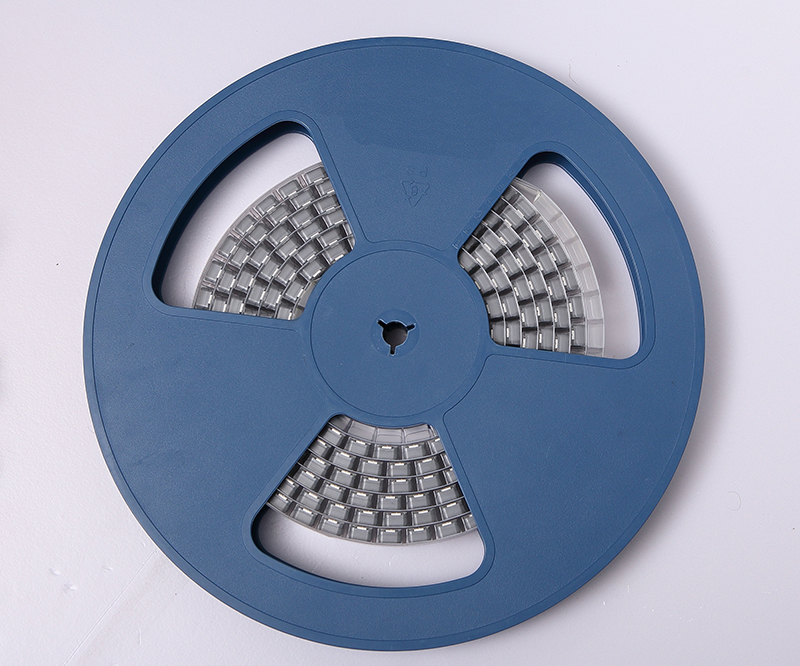

■Real Packing of SMT Inductor
Tape and Reel Dimensions:(unit:mm)
Surface Mounting Type, Reel/Tape List:
PACKING TYPE | Reel Size(mm) | Tape Size(mm) | Q’ty, Pcs/reel | |||||||||||
A | B | G | N | E | F | D0 | P | P0 | P2 | W | T | K0 | ||
LSMT-01 | 178 | 11 | 8.5 | 60 | 1.75 | 3.5 | 1.5 | 4 | 4 | 2 | 8 | 0.25 | 2.1 | 2000 |
02 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.30 | 1.7 | 1000 |
03 | 178 | 15 | 12.5 | 60 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.30 | 2.1 | 1000 |
04 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 3.0 | 2000 |
05 | 330 | 17 | 12.5 | 100 | 1.75 | 5.5 | 1.5 | 8 | 4 | 2 | 12 | 0.35 | 2.4 | 2000 |
06 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.35 | 5.5 | 2000 |
07 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.30 | 3.5 | 1500 |
08 | 330 | 21 | 16.5 | 100 | 1.75 | 11.5 | 1.5 | 12 | 4 | 2 | 24 | 0.40 | 5.9 | 1000 |
09 | 330 | 21 | 16.5 | 100 | 1.75 | 7.5 | 1.5 | 12 | 4 | 2 | 16 | 0.30 | 4.0 | 1000 |
10 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.30 | 4.2 | 1000 |
11 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.30 | 4.8 | 500 |
12 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.30 | 5.2 | 500 |
13 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.30 | 6.0 | 500 |
14 | 330 | 29 | 24.5 | 100 | 1.75 | 11.5 | 1.5 | 16 | 4 | 2 | 24 | 0.30 | 8.2 | 500 |
**包装形式没有全部列入，具体出货时以“适宜”原则选择包装物，因此实物包装有可能不按上述列表**
